Meeting the Challenges of High-Resolution Outdoor Imaging

Meeting the Challenges of High-Resolution Imaging

When I think about outdoor imaging, the first challenge that always comes to mind is lighting. Harsh sunlight, deep shadows, glare, and sudden changes in weather can all disrupt image consistency in ways that are difficult to predict. But lighting is only one piece of the puzzle. In high-resolution imaging, the demands quickly multiply vibration from airborne platforms, overwhelming data streams from modern sensors, and the struggle to store or offload that data efficiently all add layers of complexity. Together, these factors make outdoor imaging one of the most technically demanding environments for vision systems.

Key Challenges in High-Resolution Imaging

• Handling extreme and inconsistent lighting conditions.
• Managing motion and vibration that cause image blur or distortion.
• Maintaining high optical precision for superior image resolution.
• Capturing and processing massive high-bandwidth data streams.
• Delivering real-time results without delays.
• Recording for extended durations without exhausting storage.
• Staying within strict SWaP limits (size, weight, and power).
• Efficiently offloading and processing data post-capture.

Each of these hurdles is significant on its own. Combine them, and you get a serious engineering challenge.

Why Standard Solutions Fall Short

Most off-the-shelf systems—pairing a high-resolution camera with a standard recorder or PC—work fine in controlled environments. But outdoors, their weaknesses quickly show: limited bandwidth, rigid architectures, restricted storage, and bulky, power-hungry designs can’t keep up with modern mission demands.

That gap is what motivated us to rethink how imaging systems can work together more efficiently.

A Partnership Built for Real-World Demands

illunis and Gidel have partnered to deliver a cost-effective, high-performance solution that’s flexible, modular, and ready for high-resolution imaging, high-bandwidth outdoor applications. The synergy between the two technologies is what makes this collaboration powerful.

illunis contributes decades of expertise in ultra-high-resolution cameras (51–250 MP) featuring global shutter sensors that eliminate distortion and provide consistent results, even in motion. These cameras are rugged, lightweight, power-efficient, and built for customization—perfect for outdoor deployments. illunis also offers a range of 35 mm to large-format lens solutions and active Canon EF and RF lens mounts with electronic focus, aperture, and stabilization control, including power zoom RF support.

Gidel provides FPGA-based imaging platforms that handle real-time acquisition, preprocessing, and compression of massive data streams. With features such as HDR, white balance, dynamic luminance balance and AI-assisted image processing, Gidel’s systems manage bandwidth efficiently and can extend recording capacity by up to 10×. Compact edge computers, like the FantoVision20, are engineered for low-SWaP environments where efficiency is mission-critical.

Together, this partnership bridges the gap between raw sensor performance and field-deployable imaging systems.

A Real-World Example: Aerial Infrastructure Monitoring

Imagine an aerial inspection mission to monitor power lines using the illunis EMC2-103MP Global Shutter CMOS camera paired with the Gidel FantoVision20 edge computer.

The Application Demands

• Resolution & Frame Rate: The EMC2-103MP delivers 103 MP (11,276 × 9,200) images at 7.0 fps over 10GigE, outputting 12-bit precision. Each frame is approximately 155 MB, generating a continuous 1.09 GB/s (~8.7 Gb/s) data stream.
• Mission Duration: A 3-hour flight at 7.0 fps would yield nearly 12 TB of uncompressed data.
• Motion Reliability: The global shutter design ensures distortion-free capture under UAV vibration or turbulence.
• SWaP Efficiency: With a 440 g body and ~7 W power draw, the EMC2-103MP is lightweight and power-efficient, ideal for airborne payloads.
• Turnaround Speed: Post-mission data offload must be fast to minimize downtime between flights.

How illunis and Gidel Solve It:

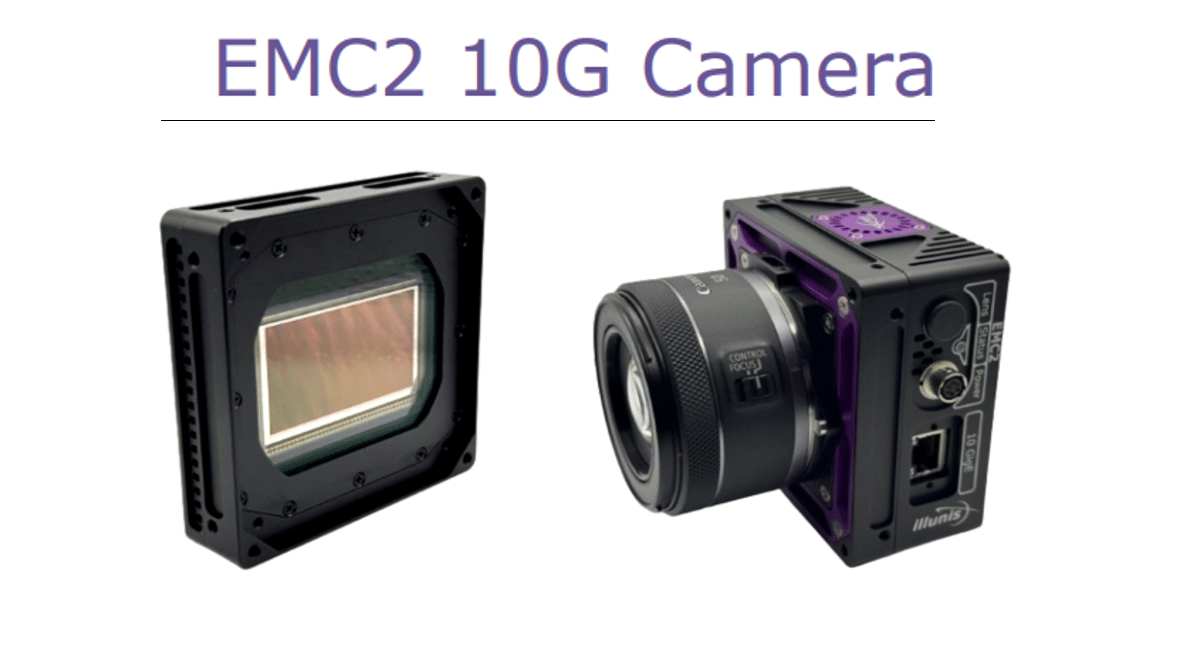

The Camera – illunis EMC2-103MP Global Shutter CMOS

• 103 MP global shutter CMOS sensor for ultra-detailed, distortion-free imaging.
• 3.2 µm pixel pitch balances resolution and light sensitivity.
• 10GigE interface for high-speed, long-distance data transmission.
• 440 g weight and low power (~7 W) ensure easy UAV integration.
• RF Lens Controller supports aperture, focus, and zoom control for Canon RF lenses.

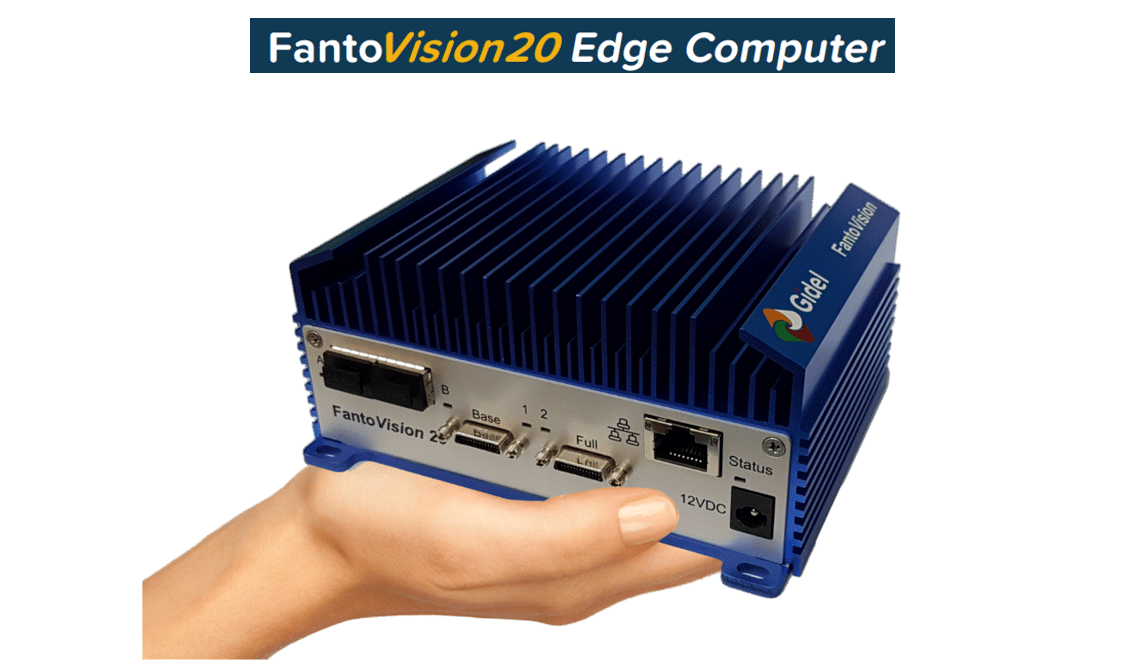

  The Processing & Recording – Gidel FantoVision20

• FPGA-based frame grabber handles the 1.09 GB/s stream with zero frame loss.

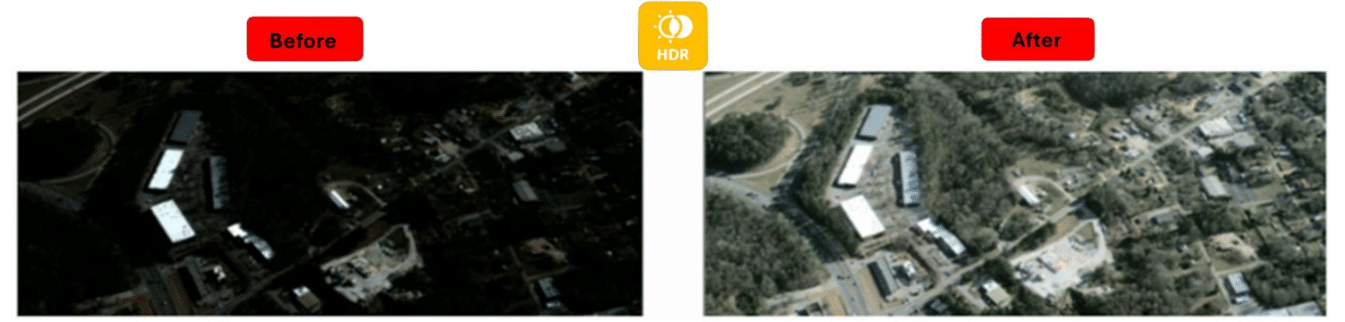

• Real-time preprocessing: HDR, white balance, dynamic luminance balance and filtering on-the-fly.

• On-the-fly 10× compression reduces mission data from ~12 TB to ~1.2 TB while preserving full inspection quality.
• High-speed NVMe storage (>1 GB/s sustained) prevents bottlenecks.
• Compact design (~750g, ~30 W) ideal for UAV or aircraft integration.
• Optional Jetson Orin AI module enables in-flight defect detection and real-time analytics.

Data Flow in Practice

The Outcome: Real-Time Processing of >100MP Outdoor Imaging

With illunis and Gidel working together, this system transforms a challenging imaging workflow into a streamlined, deployable solution:

• No dropped frames or image distortion, even under demanding conditions.
• 10× data reduction enables long-duration missions without constant storage swaps.
• SWaP goals met, keeping payloads light and power efficient.
• Post-mission turnaround reduced from hours to under one hour.

Instead of wrestling with data overload, teams gain a refined, ready-to-analyze image stream that drives faster, smarter decision-making.

Looking Ahead to High-Resolution Imaging Solutions

Outdoor imaging no longer means choosing between performance, cost, and practicality. By combining illunis’s high-resolution sensor and lens-control technology with Gidel’s FPGA-based real-time processing and compression platforms, integrators and developers now have a complete toolkit built for real-world field operations.

It’s a partnership founded on a shared goal: to make cutting-edge imaging both technically robust and deployable, turning complex missions into achievable, efficient solutions.

For more information and High-Resolution Imaging solutions, refer to: www.illunis.com and www.gidel.com.
